HR 7213

type ST · family 1AP1 · 23.1 kV maximum anode voltage · 90° deflection · 4 windings · 345 g

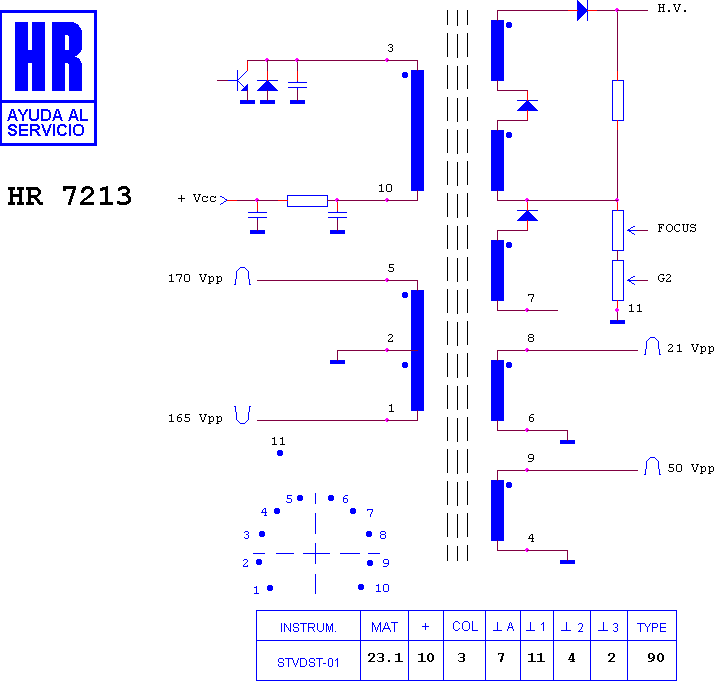

Schematic diagram for HR 7213
schematic

Manufacturer equivalents (7)

094-01072/0.4 · 094-01072/1.2 · 32000210 · 32054052 · 33000210 · 94-01072/0.4 · 94-01072/1.2

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7186 · HR 6286 · HR 7157 · HR 7133 · HR 7616 · HR 6506 · HR 8341 · HR 7688 · HR 7083
