HR 7133

type ST · family 1AP1 · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 345 g

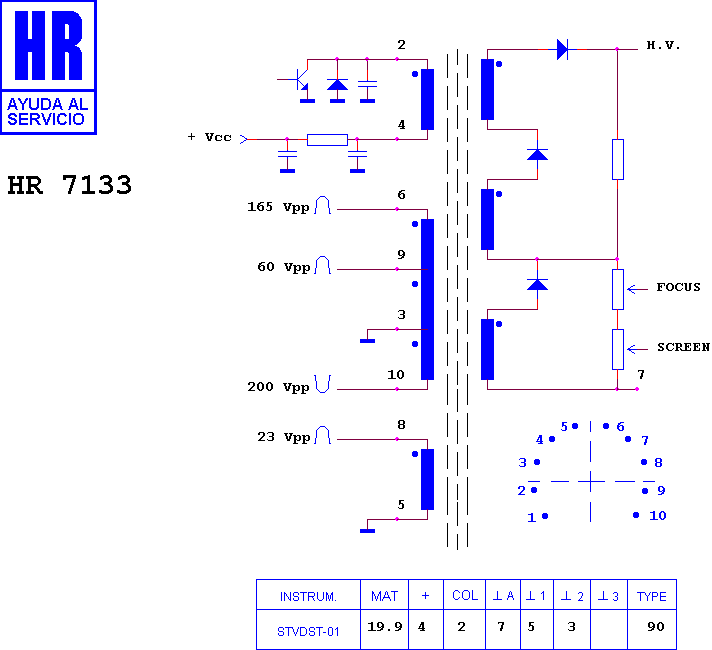

Schematic diagram for HR 7133
schematic

Manufacturer equivalents (9)

094-01038/0.7 · 094-01038/2.3 · 1105.1387 · 1105.1387A · 32337.00 · 32337.01 · 32337.02 · 940103807 · HR 7133

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7529 · HR 7157 · HR 7097 · HR 7384 · HR 7771 · HR 7185 · HR 6394 · HR 7241 · HR 7186 · HR 7213 · HR 6286 · HR 8341

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

SANYO CEP 1793 TXT · SANYO CEP 2193 · SANYO CEP 2194 TXT · SANYO CHASIS E 8 90§ · SONITRON S 721 TXT
