HR 7097

type ST · family 1AP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 365 g

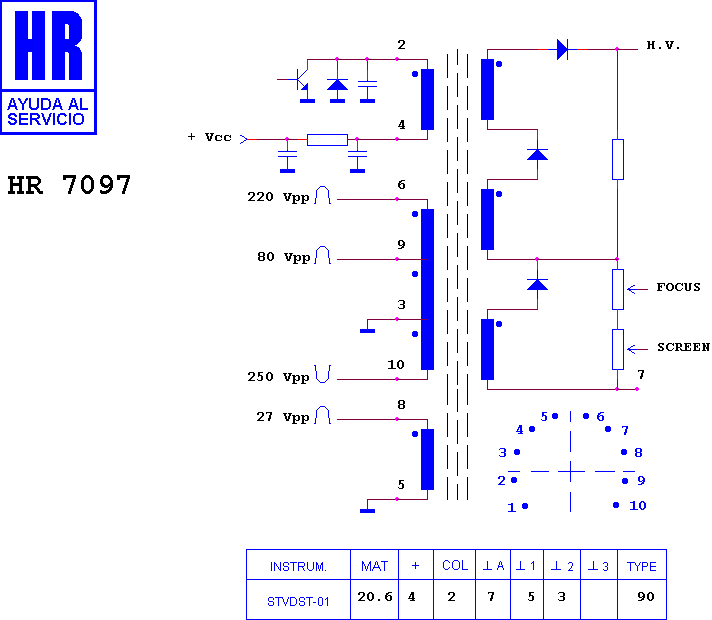

Schematic diagram for HR 7097
schematic

Manufacturer equivalents (16)

0.0107 · 0000.0107 · 094-01026/0.1 · 1105.1357 · 1192.0657 · 1192.0658 · 1192.0658A · 200 ICH 3527 · 32330.00 · 94-01026/0.1 · FAT30368 · HR 7097 · HR 7097-00 · KN30368 · PET32-C1 · TR1193

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7529 · HR 7157 · HR 7133 · HR 7241 · HR 6394 · HR 7185 · HR 8041 · HR 7186 · HR 6286 · HR 7198 · HR 8021 · HR 7594

Fitted to (8)

CIHAN ELECTRONIC GRUNDIG CHASIS COC 1 · FISHER FTMC 540 · SANYO CEP 1791 · SANYO CEP 2191 · SANYO CEP 2191 P · SANYO CEP 2194 TXT · SANYO CEP 3091 · SANYO CEP 3092
