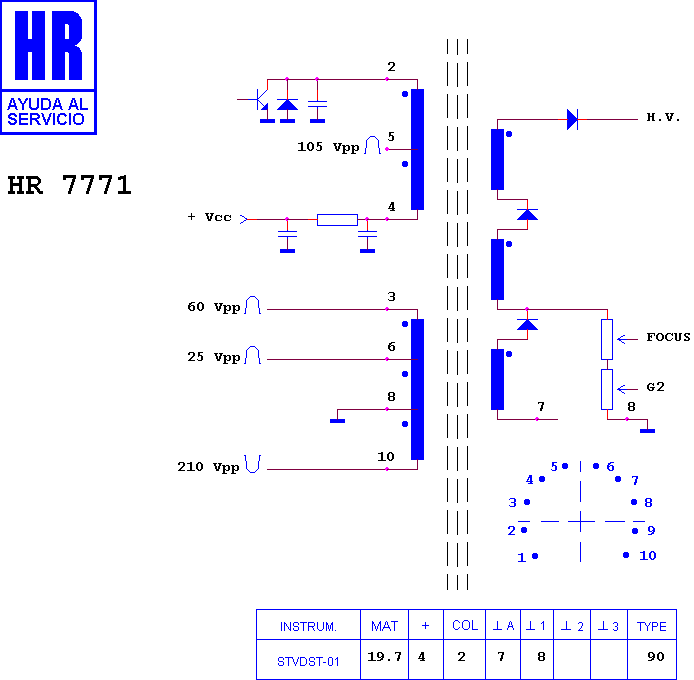

HR 7771

type ST · family 1NP1 · 19.7 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

404046.60

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7031 · HR 7577 · HR 7133 · HR 7384 · HR 7137 · HR 7065 · HR 7537 · HR 7445 · HR 8222 · HR 6554 · HR 7473 · HR 8137

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

IMPERIAL 55 DX 92 · IMPERIAL DELTA · PHILCO BF 9521
