HR 7473

type ST · family 1XP1 · 20.3 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

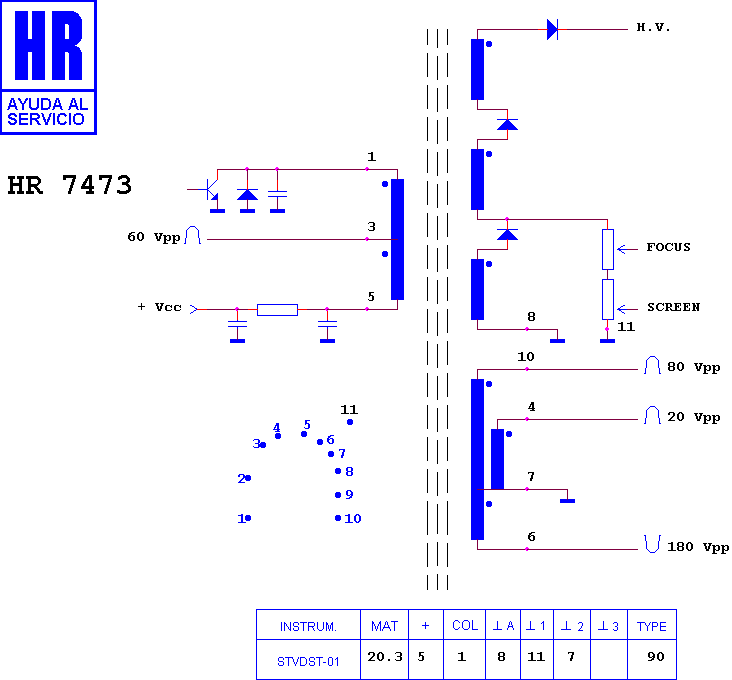

Schematic diagram for HR 7473
schematic

Manufacturer equivalents (13)

003141018 · 154 177 T · 154277R · AFS 301 · FCM 20 B 031 · FCM 20 B 031 A · KN30203 · LTF00CPGS008 · LTF00CPGS009 · LTF00CPSM008 · LTF00EPSM001 · RO 325 · TR 073

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7634 · HR 8330 · HR 8479 · HR 7537 · HR 7031 · HR 7599 · HR 7286 · HR 7667 · HR 7577 · HR 8222 · HR 8307 · HR 6554

Fitted to (3)

FUNAI 2000 T MK 7 · FUNAI CHASIS 20 · FUNAI CHASIS 20"-21"
