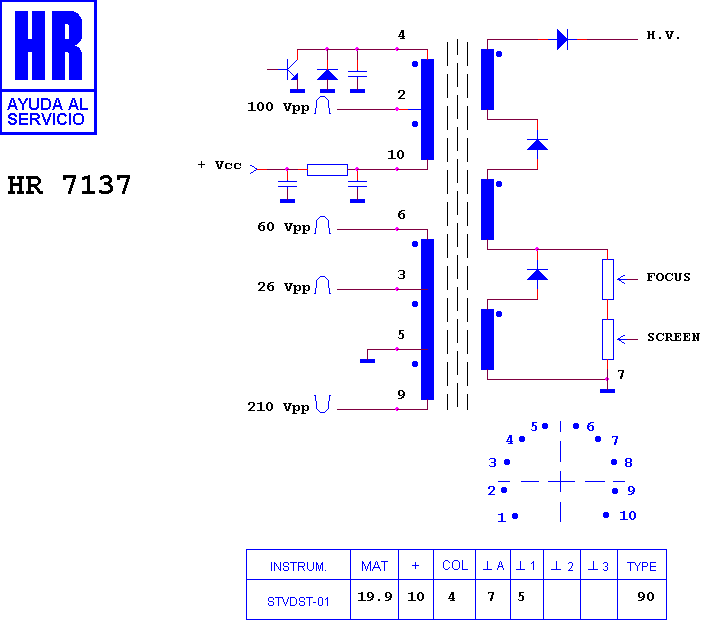

HR 7137

type ST · family 1NP1 · 19.9 kV maximum anode voltage · 90° deflection · 2 windings · 278 g

Manufacturer equivalents (1)

473357.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7065 · HR 7537 · HR 7078 · HR 7017 · HR 7554 · HR 7031 · HR 7445 · HR 8222 · HR 6554 · HR 8272 · HR 7473 · HR 8345

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

IMPERIAL CHASIS F 860
