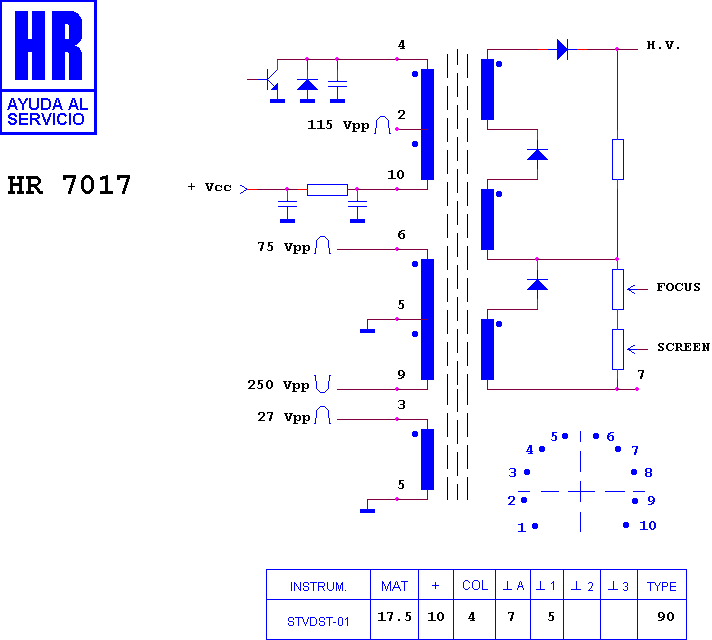

HR 7017

17.5 kV maximum anode voltage · 90° deflection · 4 windings · 320 g

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7078 · HR 7065 · HR 7137 · HR 7554 · HR 7031 · HR 7593 · HR 8137 · HR 7290 · HR 7435 · HR 7599 · HR 7286 · HR 7771

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
