HR 7554

type ST · family 1NP · 18.9 kV maximum anode voltage · 90° deflection · 3 windings · 261 g

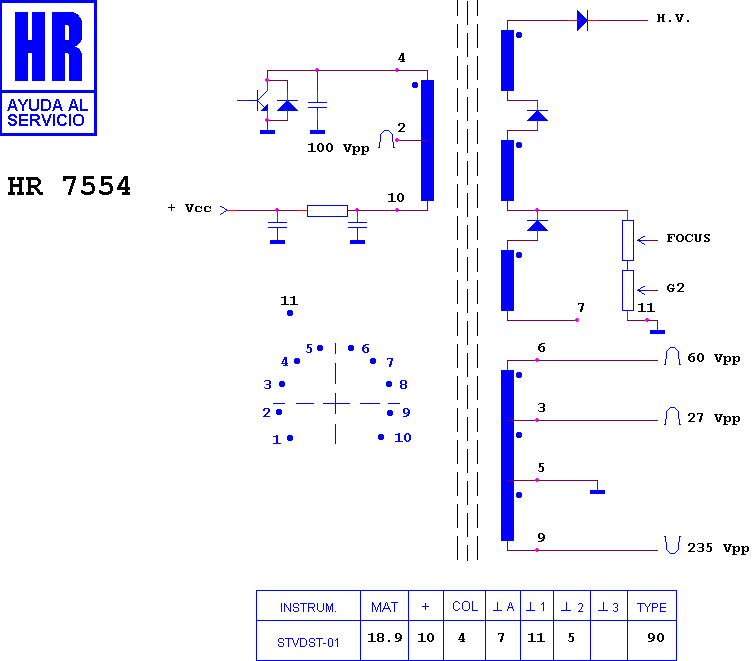

Schematic diagram for HR 7554
schematic

Manufacturer equivalents (2)

1142.0515 · 154 198 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7078 · HR 7137 · HR 7537 · HR 7065 · HR 7017 · HR 7967 · HR 7495 · HR 7599 · HR 7286 · HR 6556 · HR 8359 · HR 7593

Fitted to (7)

BUSH-MURPHY-RANK 2001 · BUSH-MURPHY-RANK 2151 T · BUSH-MURPHY-RANK CHASIS PL 1 · FIRST LINE AV 2092 · FIRST LINE AV 2192 TXT · FIRST LINE CHASIS PL 1 · TELRA CHASIS PL 1
