HR 8848

19 kV maximum anode voltage · 90° deflection · 3 windings · 408 g

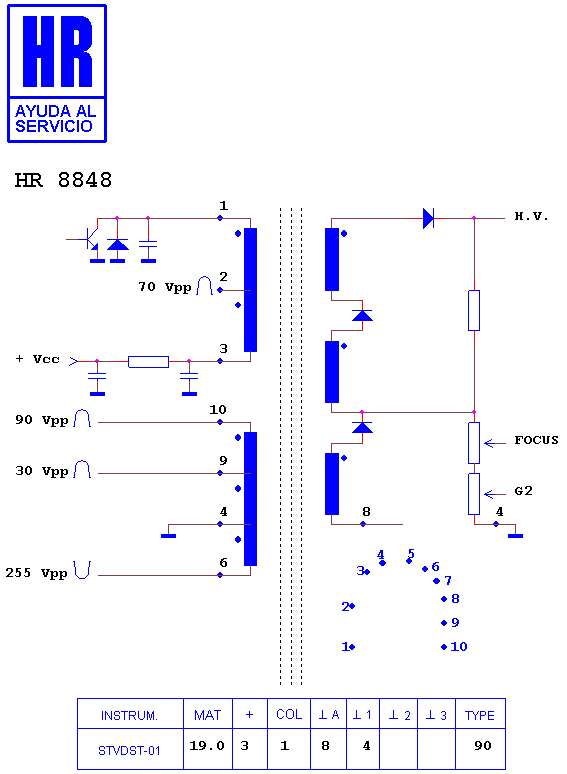

Schematic diagram for HR 8848
schematic (archived)

Manufacturer equivalents (3)

6174V8008B · BSC22-0562 · BSC24-0562

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8300 · HR 7751 · HR 7667 · HR 7520 · HR 6554 · HR 8269 · HR 8222 · HR 6556 · HR 7599 · HR 7286 · HR 7651 · HR 7967

Fitted to (3)

GOLDSTAR - LG 14 J 50 · GOLDSTAR - LG 994 A · GOLDSTAR - LG CZ 14 J 50
