HR 7593

type ST · family 1NP · 19.6 kV maximum anode voltage · 90° deflection · 4 windings · 240 g

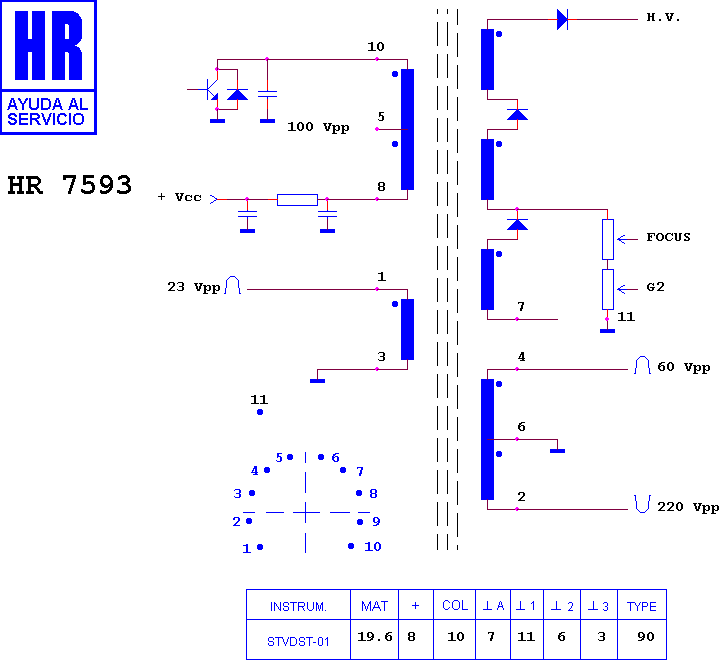

Schematic diagram for HR 7593
schematic

Manufacturer equivalents (7)

003311112 · 1142.0965 · M12-79 · PET 19-28 · RO365 · TR365 · TVL 108/5

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7599 · HR 7286 · HR 7031 · HR 8667 · HR 7967 · HR 7495 · HR 6556 · HR 8137 · HR 7290 · HR 7137 · HR 7435 · HR 7771

Fitted to (14)

DIORA 90§ · ELEMIS 3711 · ELEMIS 5510 · ELEMIS 5511 · ELEMIS 5516 · UNIMOR 462 · UNIMOR 4625 · UNIMOR CHASIS BX 2002 · UNIMOR CHASIS SIESTA 3 · UNIMOR OTC T 41 A 2 · UNIMOR OTC T 51 A 2 · UNIMOR T 41 A 2 · UNIMOR T 51 A 2 · UNIMOR ZC 41 A 2-2100
