HR 8021

type ST · family 1AP1 · 22 kV maximum anode voltage · 90° deflection · 4 windings · 366 g

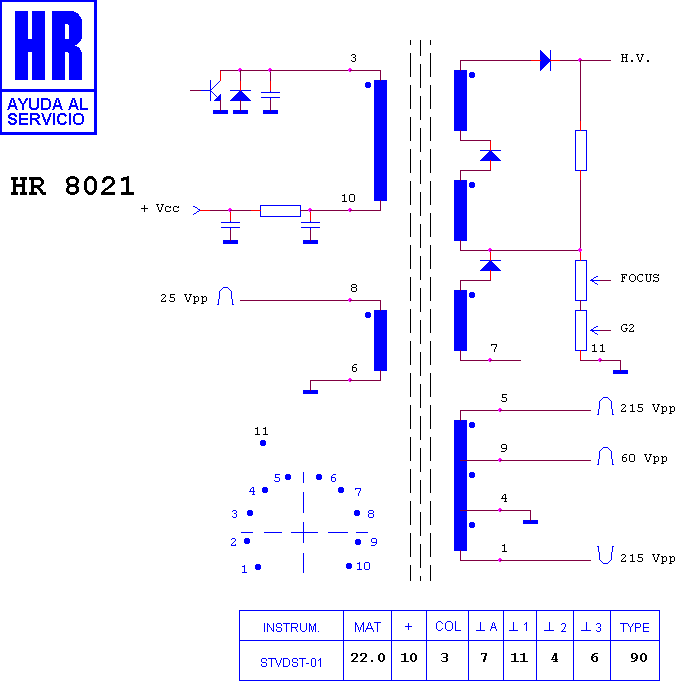

Schematic diagram for HR 8021
schematic

Manufacturer equivalents (5)

094-01085/0.9 · 1192.1297 · 1192.1297A · 1362.3025 · 94-01085/0.9

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7186 · HR 7038 · HR 7241 · HR 6286 · HR 7157 · HR 6512 · HR 8378 · HR 7185 · HR 8041 · HR 6125 · HR 7529 · HR 6047

Fitted to (4)

SANYO C 2158 · SANYO C 2158 N · SANYO C 2170 · SANYO C 2180
