HR 7104

type ST · family 1AP2 · 19.7 kV maximum anode voltage · 90° deflection · 4 windings · 320 g

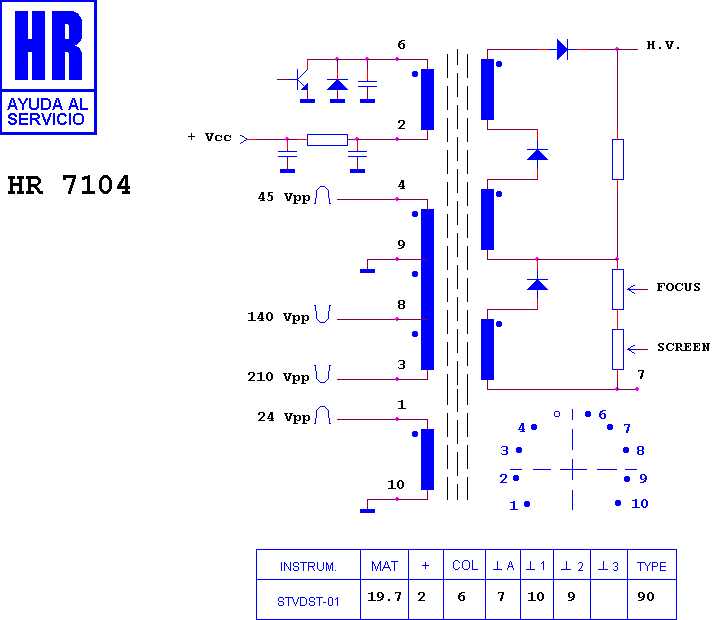

Schematic diagram for HR 7104
schematic

Manufacturer equivalents (2)

32326.00 · 32326.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8481 · HR 7353 · HR 8381 · HR 8448 · HR 8688 · HR 7841 · HR 8451 · HR 6106 · HR 7386 · HR 7738 · HR 8026 · HR 7442

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
