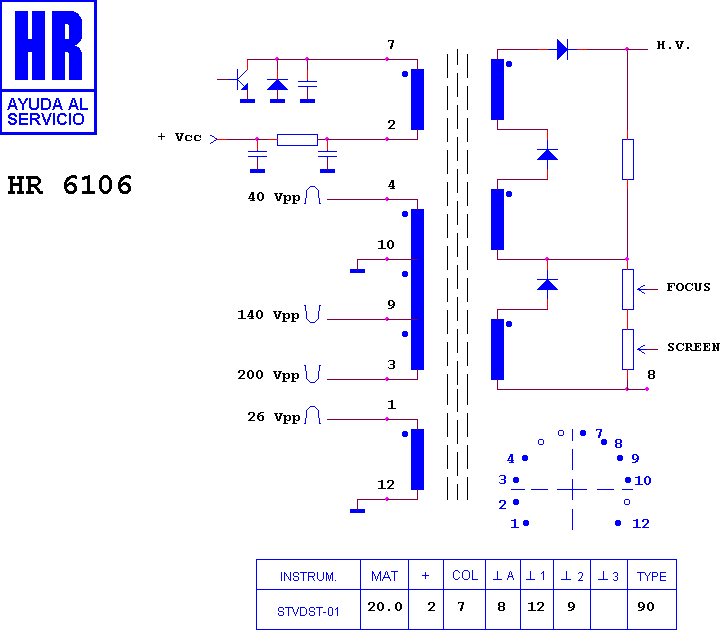

HR 6106

type ST · family 1BP1 · 20 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

Manufacturer equivalents (3)

37349.00 · 37349.01 · 37349.50

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7841 · HR 7738 · HR 8690 · HR 6506 · HR 8341 · HR 7096 · HR 7004 · HR 7998 · HR 7083 · HR 6231 · HR 8381 · HR 7104

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

NOKIA - ITT CHASIS 85 90§ · NOKIA - ITT CHASIS 85 A 90§ · PHILCO CHASIS 85 90§ · PHILCO CHASIS 85 A 90§ · SINGER CHASIS 85 90§ · SINGER CHASIS 85 A 90§

Search this part in the full database
