HR 8008

type ST · family 1NP · 18.5 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

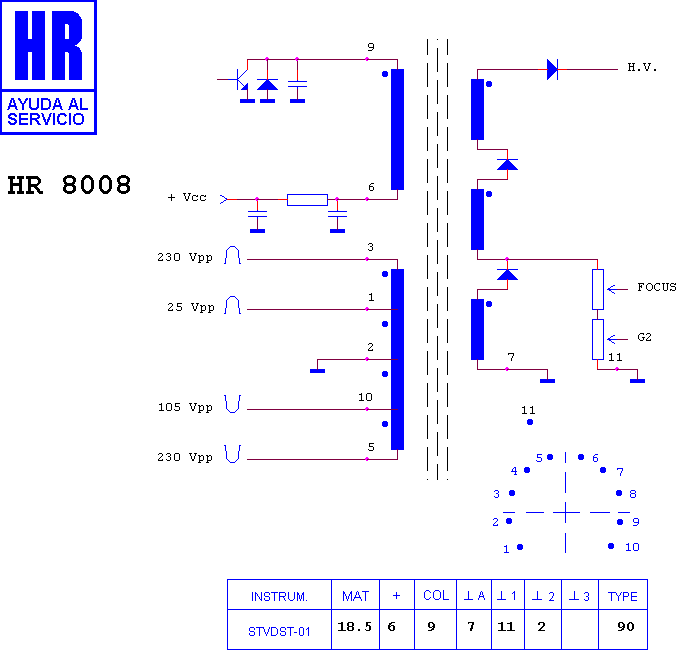

Schematic diagram for HR 8008
schematic

Manufacturer equivalents (14)

003071082 · 051.759 · 051.760 · 058.423 · 058.423 TR 1 · 058.423EL1 · 1142.1635 · 1142.1635A · 3071082 · FAT30668 · HR 8008 · KN30668 · RO 455 · TR 455

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8484 · HR 8961 · HR 8051 · HR 8880 · HR 8768 · HR 8114 · HR 8480 · HR 7167 · HR 7173 · HR 7198 · HR 7234 · HR 7209

Fitted to (1)

BEKO - BEKOTEKNIK CHASIS 12.1 90§
