HR 8051

type ST · family 1NP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 276 g

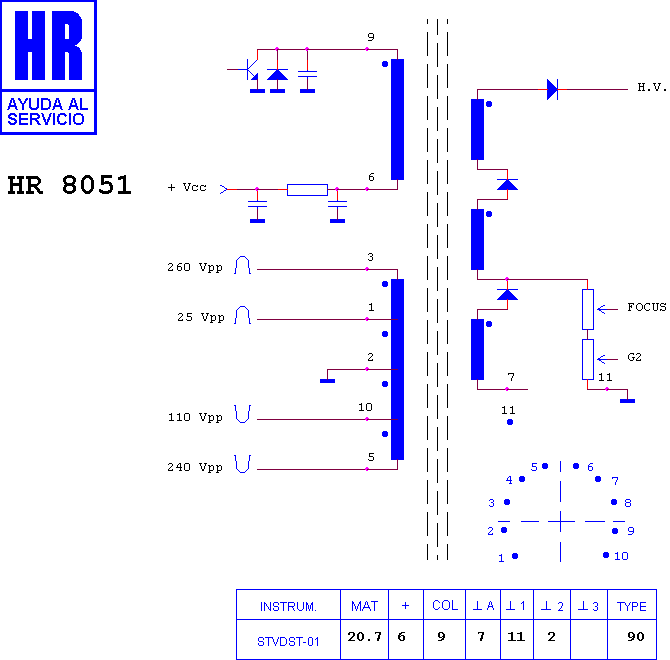

Schematic diagram for HR 8051
schematic

Manufacturer equivalents (17)

003071083 · 040.032EL1 · 040.032R-E1 · 051.756 · 056.013 TR 1 · 058.013 TR 1 · 058.013EL1 · 1142.1645 · 1142.1842 · 3071083 · 75955.058.03 · 75955.058.0300 · FAT30662 · HR 8051 · KN30662 · RO 457 · TR 457

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8484 · HR 8041 · HR 8961 · HR 8880 · HR 8043 · HR 8008 · HR 7167 · HR 7173 · HR 8114 · HR 6091 · HR 7428 · HR 7170

Fitted to (5)

BEKO - BEKOTEKNIK 20 B 3 M 07 · BEKO - BEKOTEKNIK 20 M 07 · BEKO - BEKOTEKNIK CHASIS 12.1 90§ · BEKO - BEKOTEKNIK CTV · UNITED UTV 9020 X
