HR 8074

type ST · family 1AS1 · 21.8 kV maximum anode voltage · 90° deflection · 4 windings · 346 g

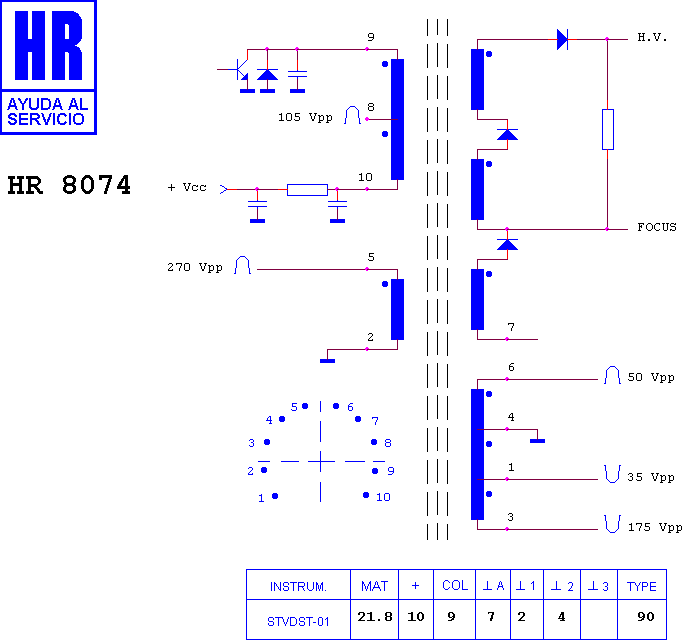

Schematic diagram for HR 8074
schematic

Manufacturer equivalents (8)

003310107 · F36N.3603 · FAT30320 · HR 8074 · KN30320 · M 10-08 · RO 302 · TR 302

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7801 · HR 8782 · HR 8752 · HR 6610 · HR 8263 · HR 7789 · HR 7820 · HR 7721 · HR 8268 · HR 8277 · HR 7472 · HR 8085
