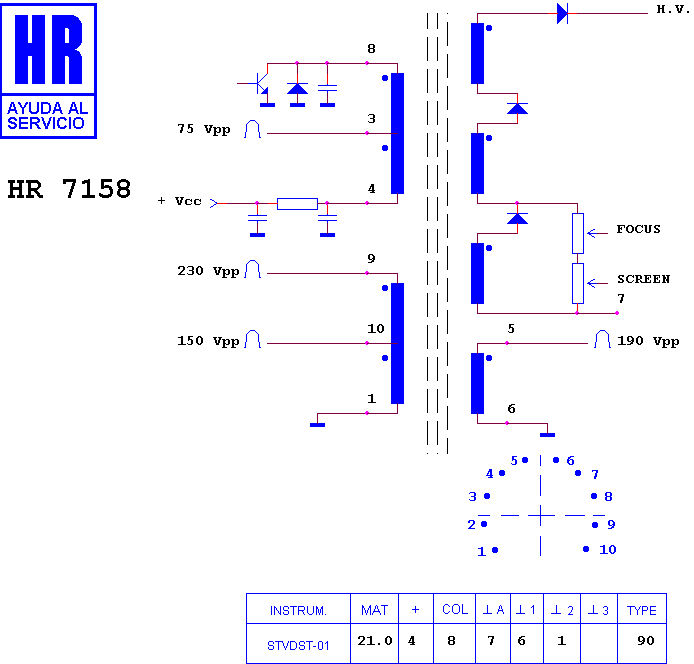

HR 7158

type ST · family 1NP1 · 21 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (3)

32327.00 · 473152.00 · 534 TX 0326

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80131 · HR 7594 · HR 7245 · HR 8760 · HR 7601 · HR 7083 · HR 7407 · HR 8048 · HR 7025 · HR 7729 · HR 7976 · HR 7907

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

TELEFUNKEN 1420 · TELEFUNKEN PALCOLOR
