HR 6153

type ST · family 1BP1 · 17.8 kV maximum anode voltage · 90° deflection · 4 windings · 368 g

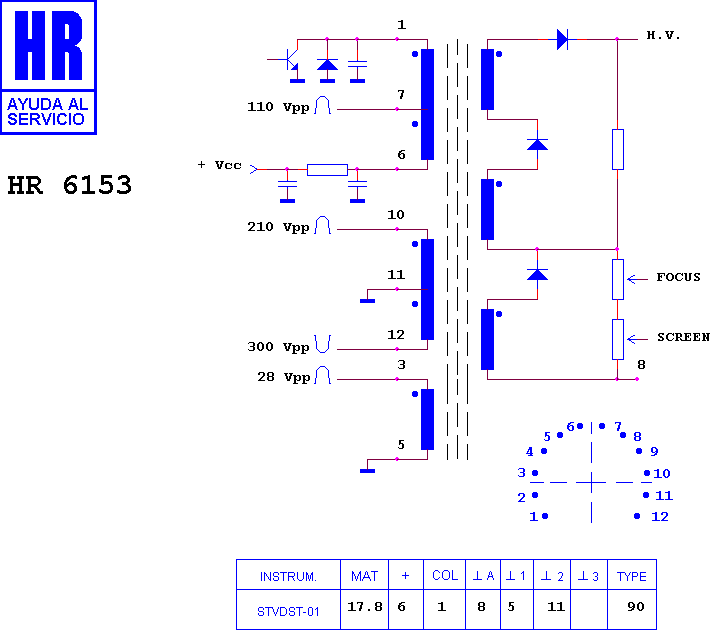

Schematic diagram for HR 6153
schematic

Manufacturer equivalents (2)

D 299/37 · ME/6083-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7331 · HR 7976 · HR 7608 · HR 8043 · HR 7347 · HR 7332 · HR 8048 · HR 8819 · HR 7025 · HR 7120 · HR 8289 · HR 6064

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
