HR 6064

type ST · family 1BP1 · 21.3 kV maximum anode voltage · 90° deflection · 4 windings · 358 g

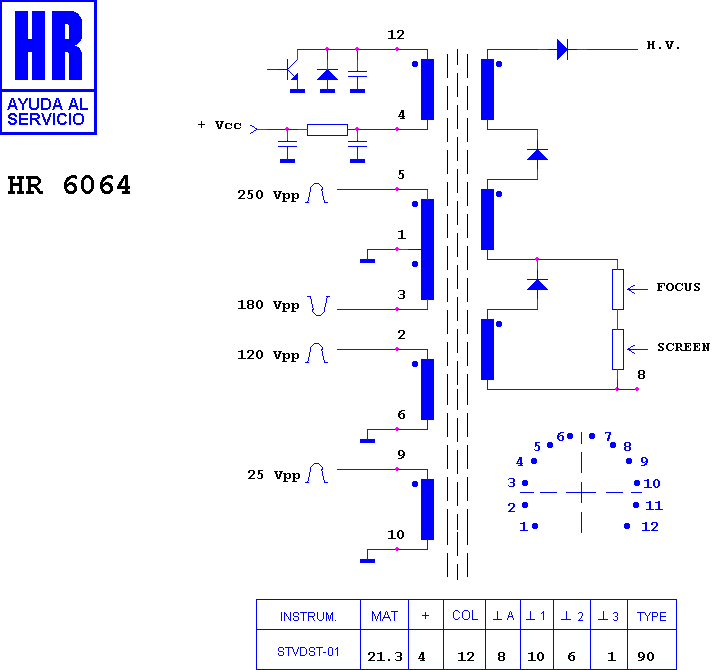

Schematic diagram for HR 6064
schematic

Manufacturer equivalents (1)

HR 6064

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6091 · HR 7418 · HR 7143 · HR 8819 · HR 7405 · HR 7404 · HR 7209 · HR 7234 · HR 8109 · HR 7198 · HR 8289 · HR 8442

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
