HR 8493

17.9 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

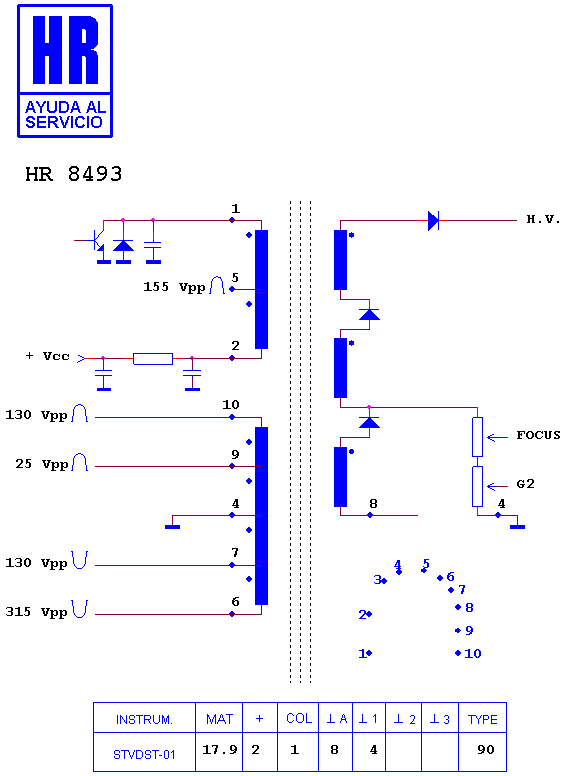

Schematic diagram for HR 8493
schematic (archived)

Manufacturer equivalents (2)

NF7305 · NF7305ST

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7679 · HR 7504 · HR 7463 · HR 80274 · HR 7583 · HR 7782 · HR 8152

Fitted to (7)

SEMP TOSHIBA TVC 10 · SEMP TOSHIBA TVC 102 · TOSHIBA TS 103 · TOSHIBA TVC 10 · TOSHIBA TVC 100 · TOSHIBA TVC 102 · TOSHIBA TVC 102 TR
