HR 7463

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

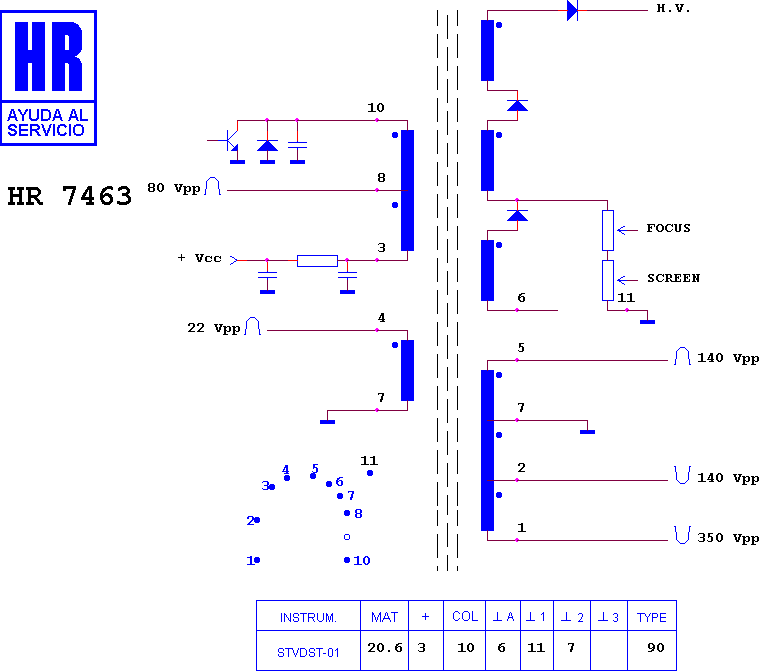

Schematic diagram for HR 7463
schematic

Manufacturer equivalents (3)

KFS 60505 · KFS 60505 A · ME/6353-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7679 · HR 8601 · HR 8152 · HR 8493 · HR 80274

Fitted to (2)

PANAMA P 14 PS · TELETECH TVC 14"

Search this part in the full database
