HR 8152

type ST · family 1NP1 · 17.6 kV maximum anode voltage · 90° deflection · 5 windings · 278 g

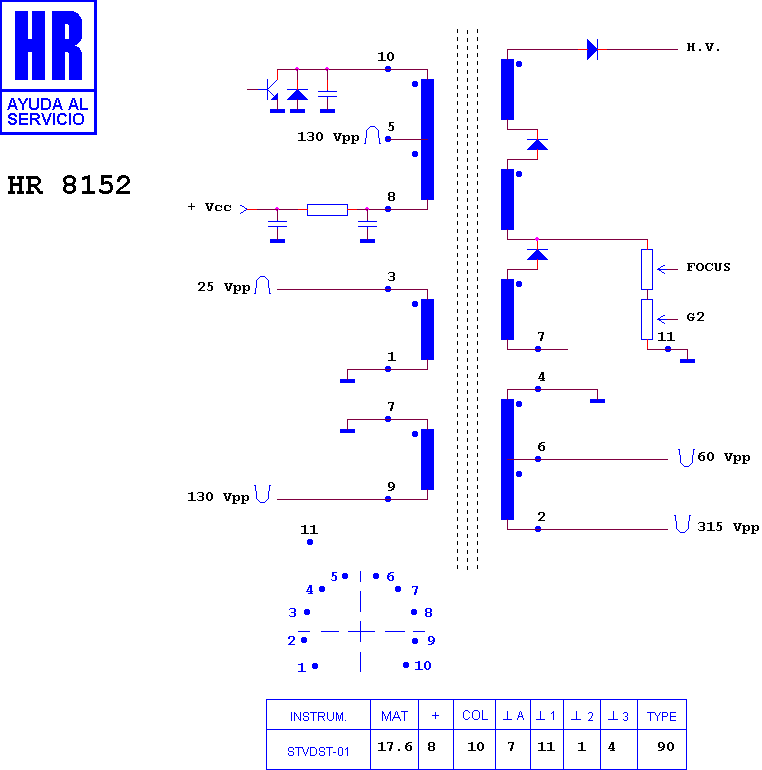

Schematic diagram for HR 8152
schematic

Manufacturer equivalents (5)

AFS252 · T82.3 · TVL 108/3 · TVL 108/4 · TVL108

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8493 · HR 7679 · HR 7504 · HR 7463 · HR 80274 · HR 7583 · HR 7782

Fitted to (9)

BIAZET 1403 · BIAZET 1404 · ECM 3/10 L · ECM MONITOR · ELEMIS 3711 · ELEMIS 5510 · ELEMIS 5510 T · ELEMIS 5511 · ELEMIS 5516

Search this part in the full database
