HR 6391

type ST · family 1BS1 · 33.6 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

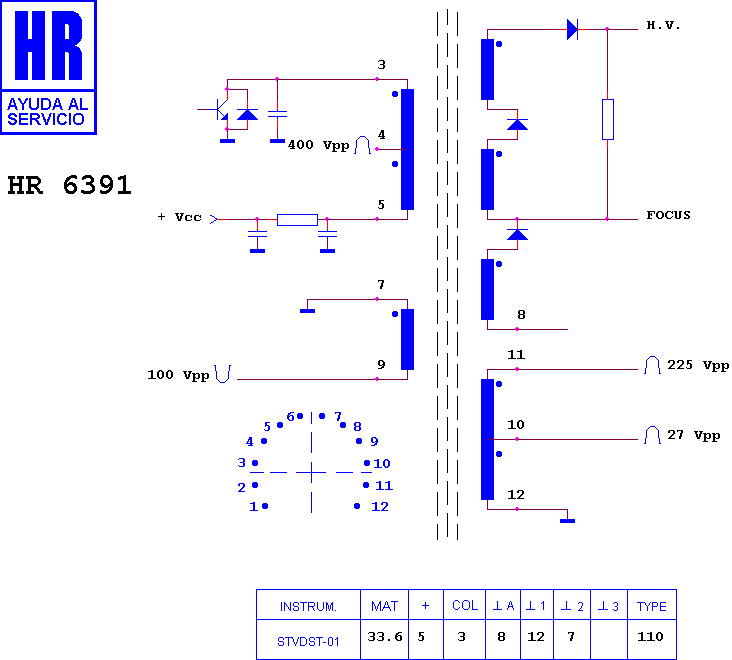

Schematic diagram for HR 6391
schematic

Manufacturer equivalents (9)

243.789 · 309 311 984 · 401547.00 · 401547.01 · 401574.00 · 401574.01 · 40308-15 · 4900 080 100 · 534TX0289

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8914 · HR 8828 · HR 8716 · HR 8532 · HR 8725

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

NORDMENDE SPACE SYSTEM 81 DS · TELEFUNKEN 325 · TELEFUNKEN 325 IT · TELEFUNKEN 325 PIP ADTV · TELEFUNKEN 335 PIP ADTV · TELEFUNKEN 9200 D · TELEFUNKEN 9200 DP · TELEFUNKEN BS 9200 D · TELEFUNKEN BS 9200 DP · TELEFUNKEN CHASIS 619 A · TELEFUNKEN CHASIS IDC 2 · TELEFUNKEN PALCOLOR BS · TELEFUNKEN PALCOLOR SM · TELEFUNKEN SM 325 · TELEFUNKEN SM 325 IT · TELEFUNKEN SM 325 PIP ADTV · TELEFUNKEN SM 335 PIP ADTV
