HR 8914

type ST · family 1YD · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

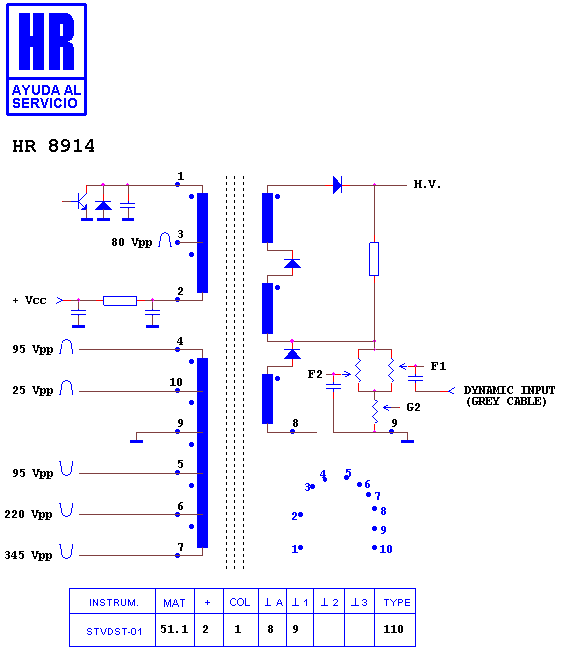

Schematic diagram for HR 8914
schematic (archived)

Manufacturer equivalents (4)

1372.7046 · 1372.7046 A · 8504 922 097 · HR 8914

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7040 · HR 8546 · HR 8725 · HR 6391 · HR 8523 · HR 6422 · HR 8532 · HR 80306 · HR 8716 · HR 8828
