HR 8523

type ST · family 1VP · 30.9 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

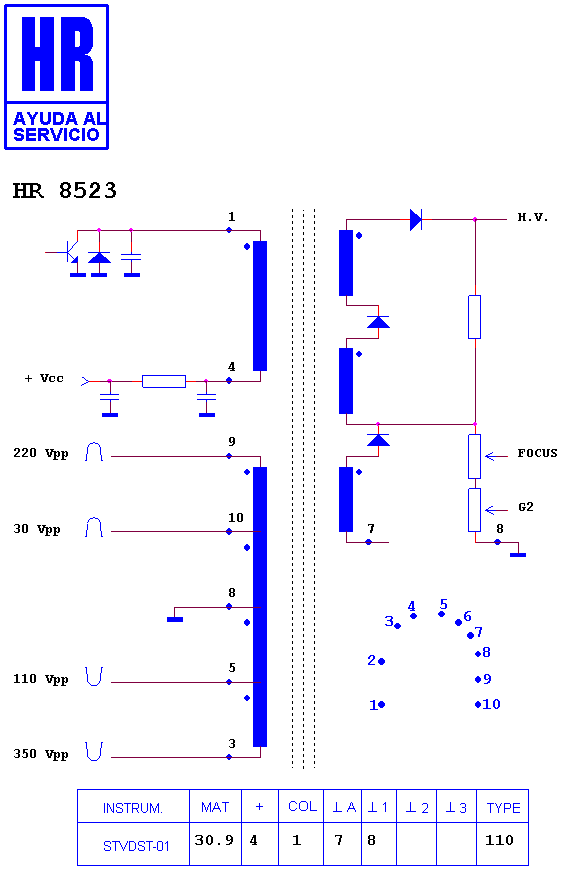

Schematic diagram for HR 8523
schematic

Manufacturer equivalents (11)

1143615 · 1352.5056 · 1352.5056 C · 1352.5056A · 1352.5056B · 50 H 0000229 · 50H0000223 · 50H0000239 · FFA64027M · FFA64717M · HR 8523

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8725 · HR 8828 · HR 80306 · HR 8532 · HR 80035 · HR 8914 · HR 8539 · HR 6422 · HR 8456 · HR 6535

Fitted to (2)

DAEWOO CHASIS WP 895 · DAEWOO WP 895 F
