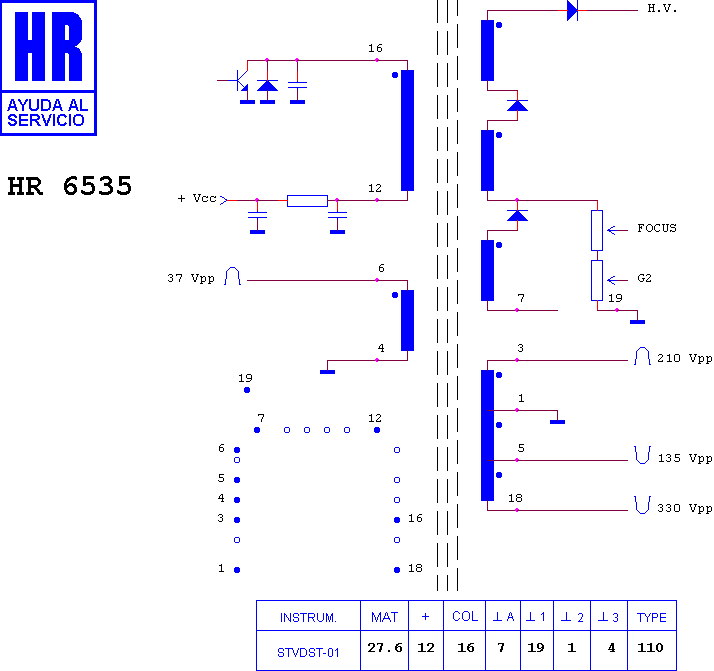

HR 6535

type ST · family 1IP · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 432 g

Manufacturer equivalents (13)

140 10431 · 140 38372 · 3122 138 38370 · 3122 138 38371 · 3122 138 38372 · 38370 · 38371 · 38372 · 38373 · 38374 · 38375 · 4822 140 10431 · 4822 140 38372

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8539 · HR 8456 · HR 8523 · HR 8689 · HR 8289 · HR 80014 · HR 6092

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead
• HR 16524 — Focus control

Fitted to (11)

PHILIPS 25 MK 2480 · PHILIPS 25 MK 2480/56 H · PHILIPS 25 MK 2480/56 R · PHILIPS 25 MK 2480/73 R · PHILIPS 25 MK 2480/79 R · PHILIPS 28 MK 2490 · PHILIPS 28 MK 2490/56 H · PHILIPS 28 MK 2490/56 R · PHILIPS 28 MK 2490/73 R · PHILIPS CHASIS MK 2 · PHILIPS CHASIS MK II

Search this part in the full database
