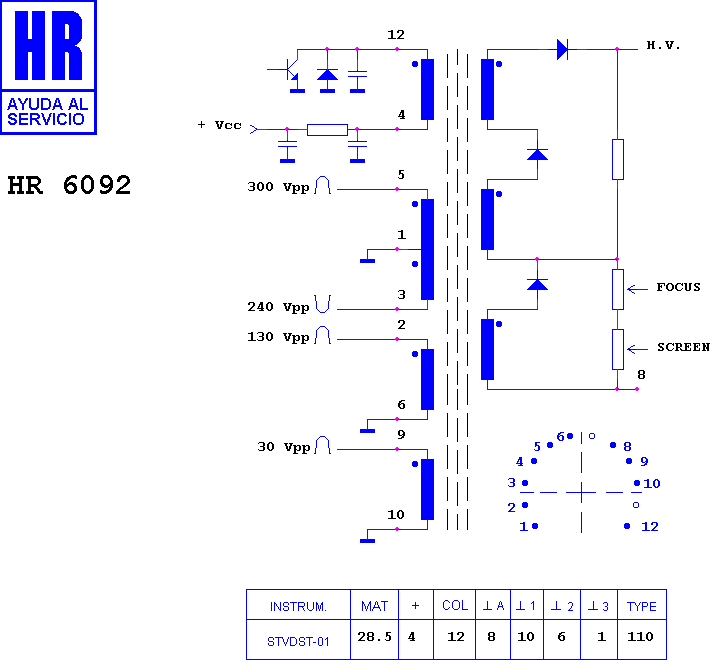

HR 6092

type ST · family 1BP1 · 28.5 kV maximum anode voltage · 110° deflection · 4 windings · 370 g

Manufacturer equivalents (3)

37363.00 · 37363.01 · HR 6092 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6101 · HR 8331 · HR 8902 · HR 6213 · HR 8991 · HR 6126 · HR 80014 · HR 8289 · HR 7067 · HR 7995 · HR 8681 · HR 7185

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
