HR 7276

type SM · family 1ACP · 27 kV maximum anode voltage · L° deflection · 5 windings · 330 g

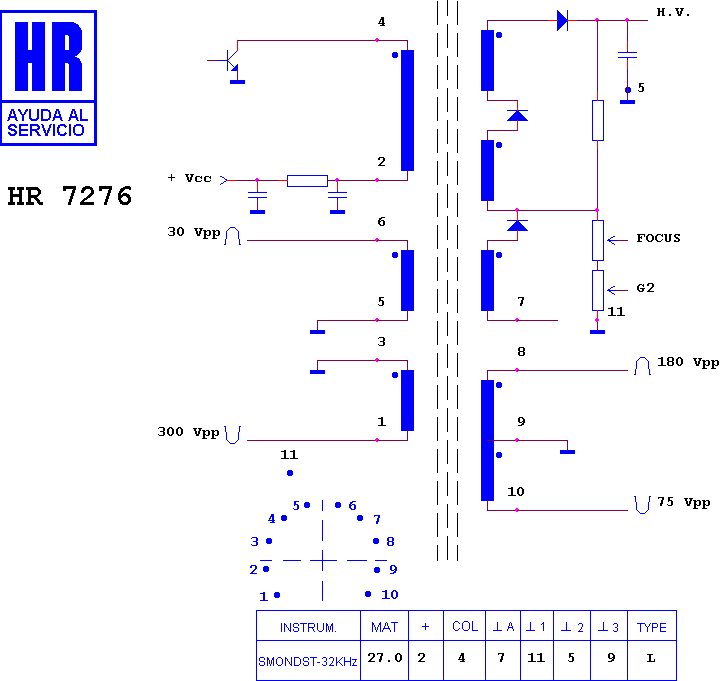

Schematic diagram for HR 7276
schematic

Manufacturer equivalents (10)

1242.0025 · 1242.0028 · 1242.0148 · 1242.0148A · 30PN0097 · 50 BN 0100 · 50BN0025 · 5318903500 · HR 7276 · MAT33305

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8798 · HR 7226

Fitted to (2)

KENT MONITOR · KME MONITOR
