HR 8798

30.2 kV maximum anode voltage · L° deflection · 5 windings · 390 g

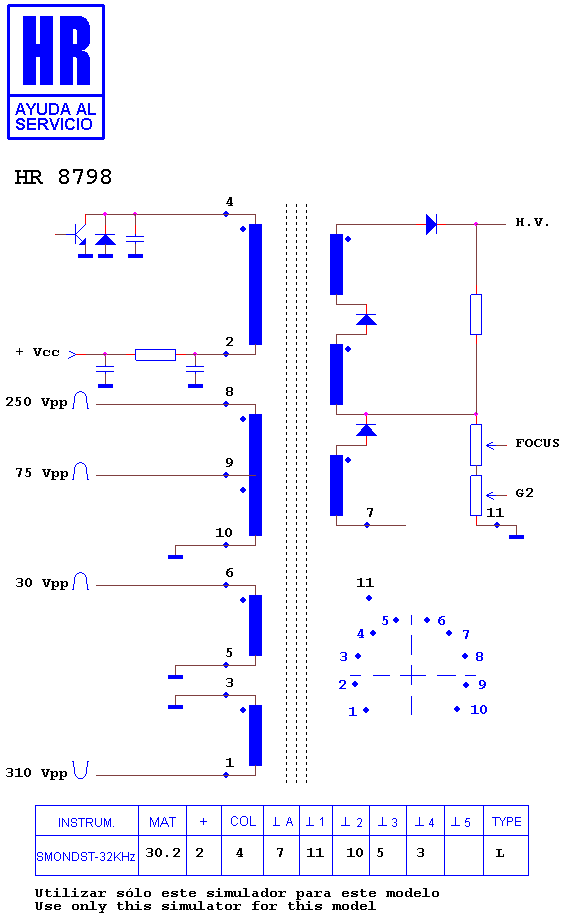

Schematic diagram for HR 8798
schematic (archived)

Manufacturer equivalents (3)

1172.0028 · 461550016 · 50BN0093

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7276 · HR 5701 · HR 5702 · HR 6658

Fitted to (14)

KENT 26 C 14 F 156 · KENT MOD 2 · KENT MONITOR · KENT MONITOR · KME 25 C 12017 · KME 26 C 14 F 156 · KME MOD 2 · KME MONITOR · KME MONITOR · KME MONITOR · ROCHESTER 26 C 12 F 22 B · ROCHESTER MOD 2 · ROCHESTER MONITOR · ROCHESTER MONITOR
