HR 7226

type SM · family 1RP · 17.8 kV maximum anode voltage · L° deflection · 3 windings · 361 g

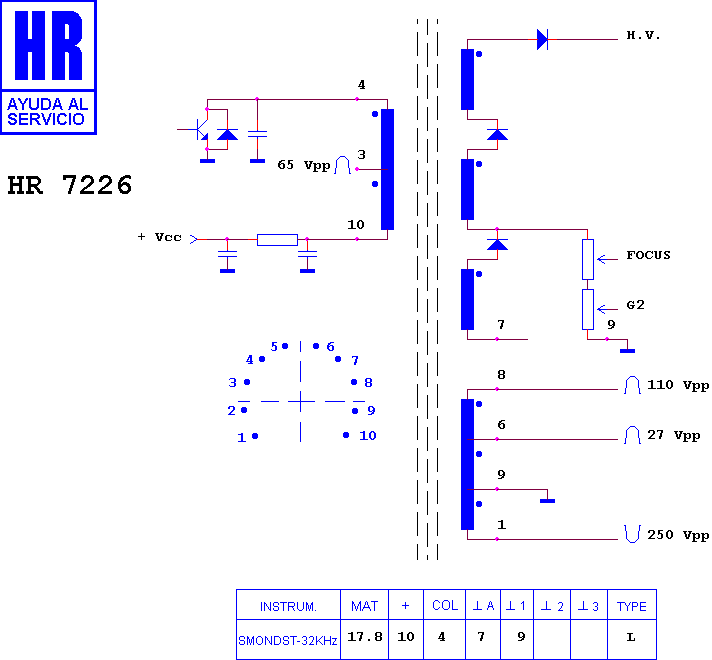

Schematic diagram for HR 7226
schematic

Manufacturer equivalents (7)

04374013 W · 043740131 · 1751509 · 3484300 · 3714013 · AM 171509 · MAT33128

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7276 · HR 8177

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
