HR 8177

type SM · family 1WP1 · 27.3 kV maximum anode voltage · L° deflection · 3 windings · 474 g

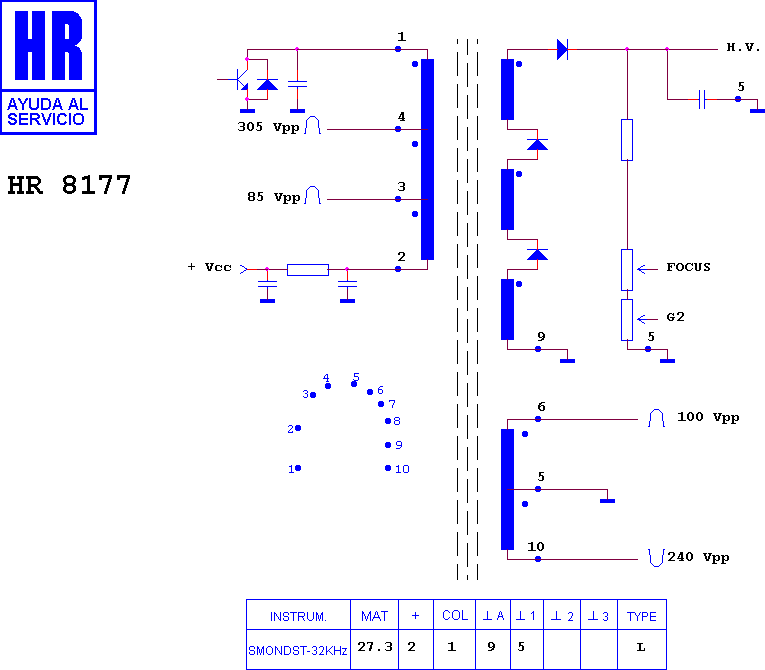

Schematic diagram for HR 8177
schematic

Manufacturer equivalents (2)

KFS 61424 · KFS 61424 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8535 · HR 8571 · HR 6598 · HR 7226

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
