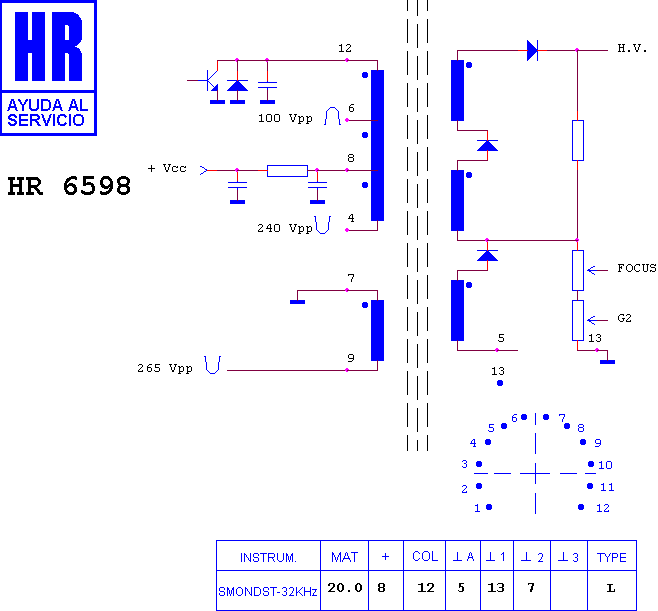

HR 6598

type SM · family 1BP1 · 20 kV maximum anode voltage · L° deflection · 3 windings · 396 g

Manufacturer equivalents (6)

1182.1217 · 1182.5017 · 28028991 · 304328 · FAT 30432 · KN 30432

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6028 · HR 6607 · HR 8739 · HR 8177

Fitted to (1)

SEG CT 8500
