HR 8739

28.9 kV maximum anode voltage · L° deflection · 5 windings · 408 g

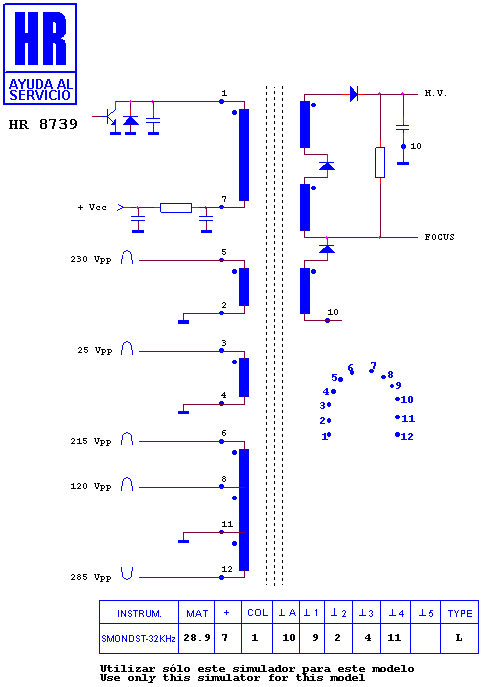

Schematic diagram for HR 8739
schematic (archived)

Manufacturer equivalents (7)

1182.9022 · 1372.9011 · 1372.90110 · 1372.9011A · 1372.9011B · 45360081 · HR 8739

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5644 · HR 6598

Fitted to (3)

NOKIA - ITT 2 · NOKIA - ITT MC · NOKIA - ITT MC 2

Search this part in the full database
