HR 8494

type ST · family 1YP · 36.6 kV maximum anode voltage · 110° deflection · 3 windings · 372 g

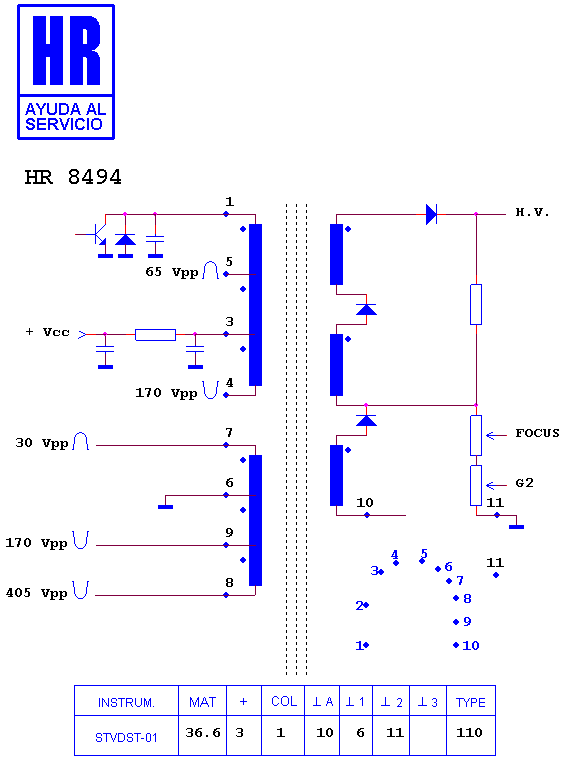

Schematic diagram for HR 8494
schematic

Manufacturer equivalents (5)

AA 26-30005 C · FTH 29 A 013 · FTH 29 A 013 A · FTH 29 A 013 G · FTH 29 A 013 S

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7974 · HR 8614 · HR 8624 · HR 8957 · HR 6380 · HR 7440 · HR 6420 · HR 6054 · HR 7992

Fitted to (3)

SAMSUNG 29 CN 765 · SAMSUNG CN 765 DW · SAMSUNG CT 766 DW
