HR 7440

type ST · family 1XP1 · 24.9 kV maximum anode voltage · 110° deflection · 4 windings · 290 g

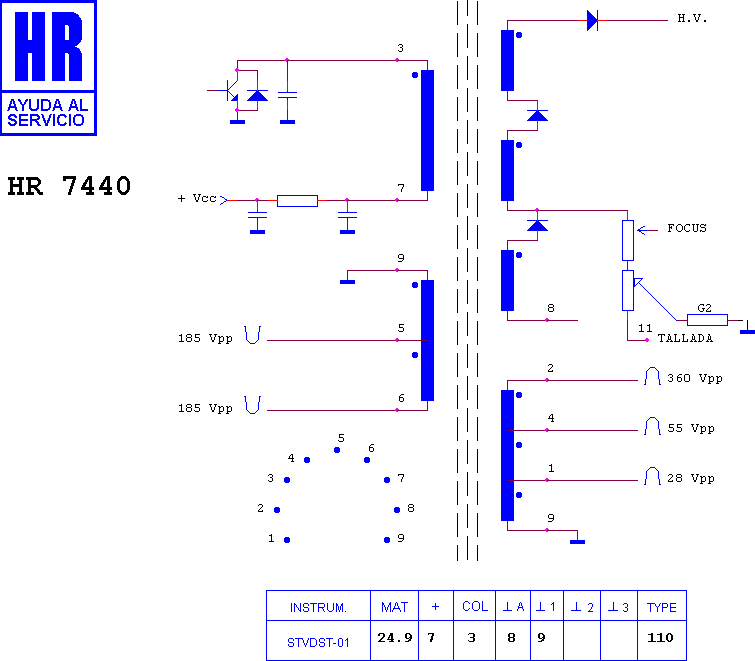

Schematic diagram for HR 7440
schematic

Manufacturer equivalents (3)

TLF 14630 · TLF 14630 F · TLF14630B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8494 · HR 7974 · HR 7995 · HR 8614 · HR 6147 · HR 6054

Search this part in the full database
