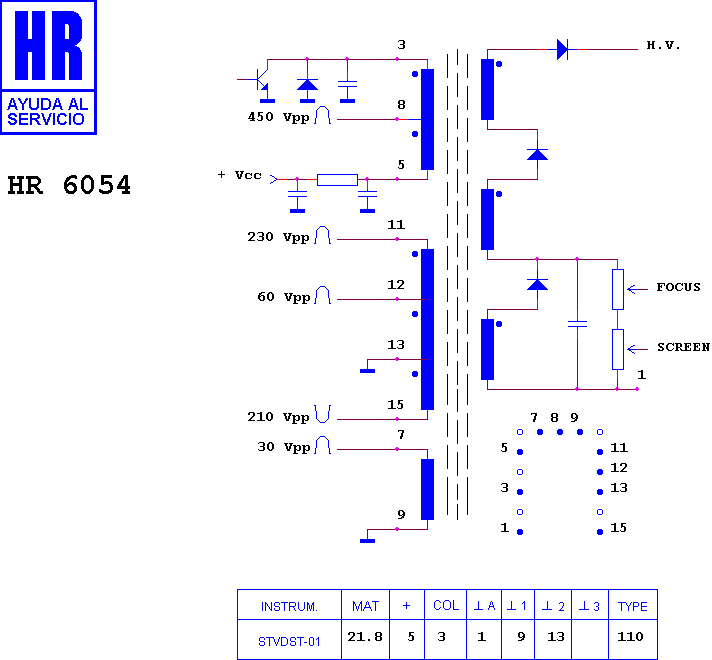

HR 6054

3 windings

Manufacturer equivalents (1)

HR 6054

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6147 · HR 7121 · HR 7440 · HR 46219 · HR 7974 · HR 7959 · HR 8494

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
