HR 7661

type ST · family 1XP1 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

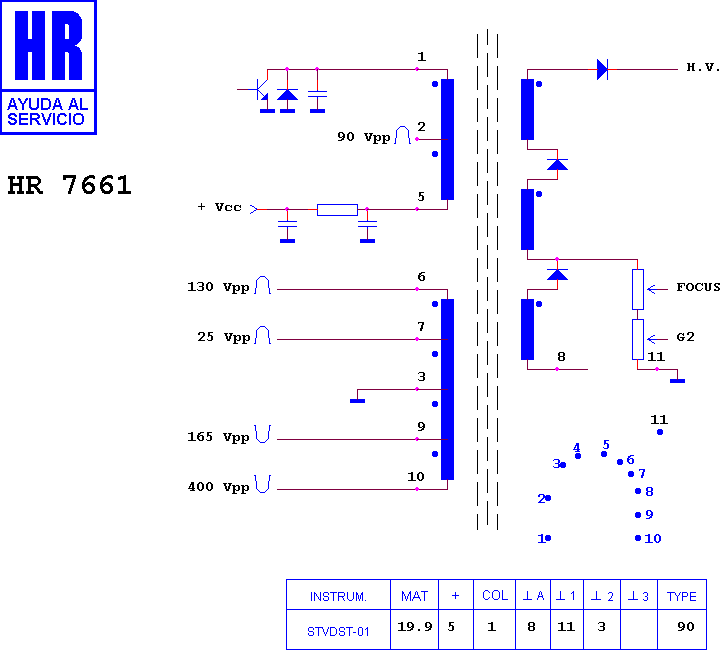

Schematic diagram for HR 7661
schematic

Manufacturer equivalents (8)

08070 · 08071 · 08072 · 08073 · 08074 · 3106 108 08070 · 3106 108 08071 · AT 2079/S1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7480 · HR 7922 · HR 8161 · HR 7611 · HR 7677 · HR 7607 · HR 8006 · HR 7422 · HR 7620 · HR 80019 · HR 7968 · HR 80221
