HR 8161

type ST · family 1NP1 · 20.8 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

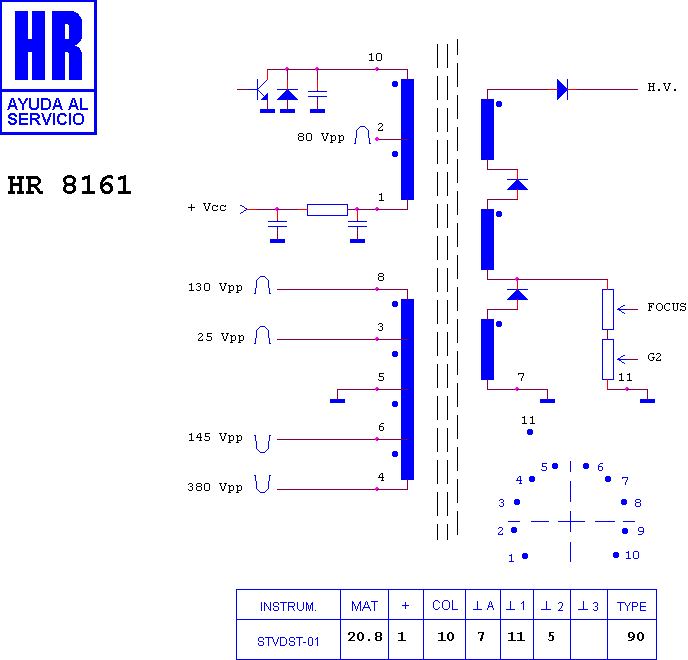

Schematic diagram for HR 8161
schematic

Manufacturer equivalents (7)

106378.80 · 1142.1545 · 1142.1545 B · 1142.1545A · FAT30743 · HR 8161 · PET19-34

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8006 · HR 7611 · HR 7607 · HR 7609 · HR 7677 · HR 7620 · HR 80019 · HR 7422 · HR 8858 · HR 8847 · HR 7968 · HR 80221

Fitted to (2)

OVP - ORAVA CTV 142 · OVP - ORAVA CTV 143
