HR 8069

type ST · family 1AP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 362 g

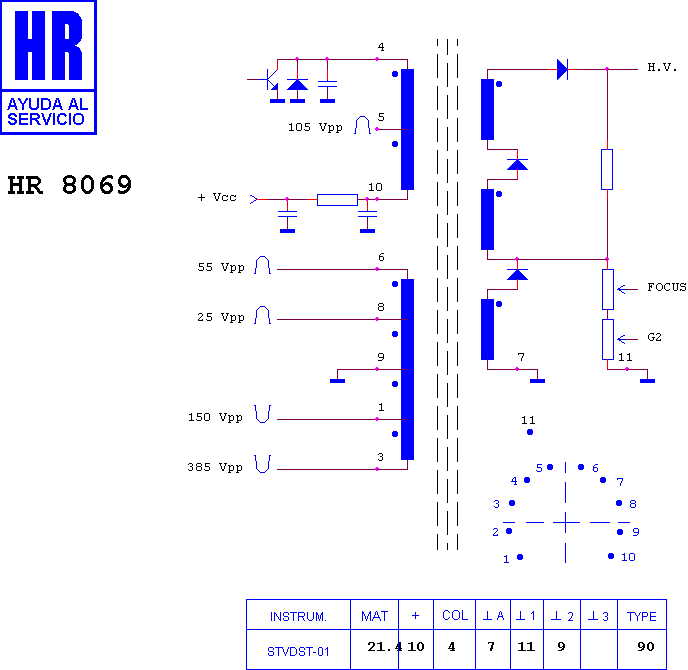

Schematic diagram for HR 8069
schematic

Manufacturer equivalents (4)

105403.70 · 40330-43 · 40332-18 · HR 8069

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6280 · HR 8847 · HR 7959 · HR 7639 · HR 7480 · HR 8161 · HR 7451

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
