HR 80056

39.3 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

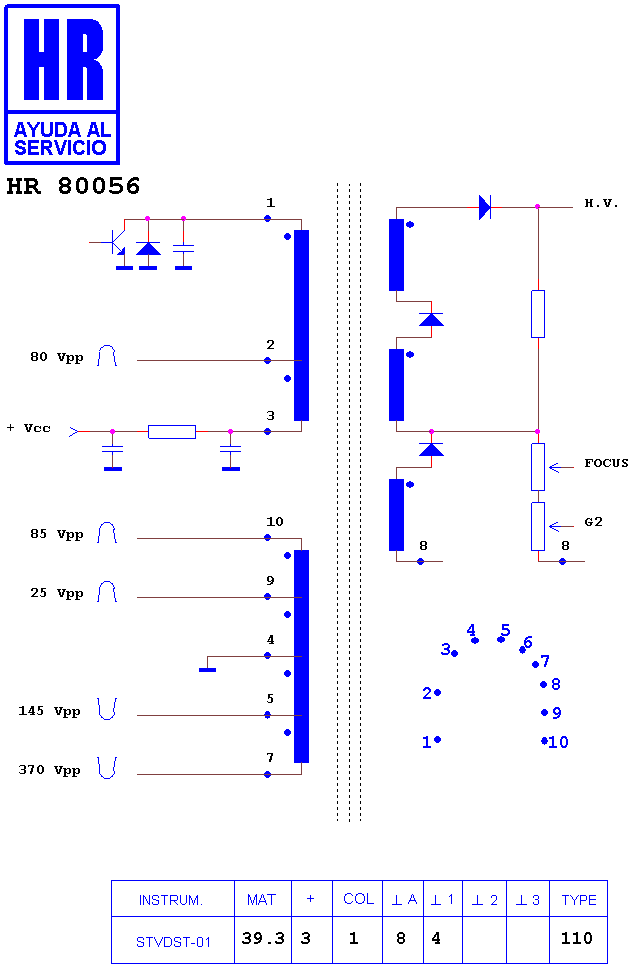

Schematic diagram for HR 80056
schematic (archived)

Manufacturer equivalents (2)

6174V6002F · BSC26N2116

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8963 · HR 7992 · HR 6420

Fitted to (4)

GOLDSTAR - LG 20 F 84 · GOLDSTAR - LG CF 20 F 84 · GOLDSTAR - LG CF 21 F 60 · GOLDSTAR - LG CL 21 N 52 X
