HR 7548

type ST · family 1NP · 25.2 kV maximum anode voltage · 110° deflection · 3 windings · 264 g

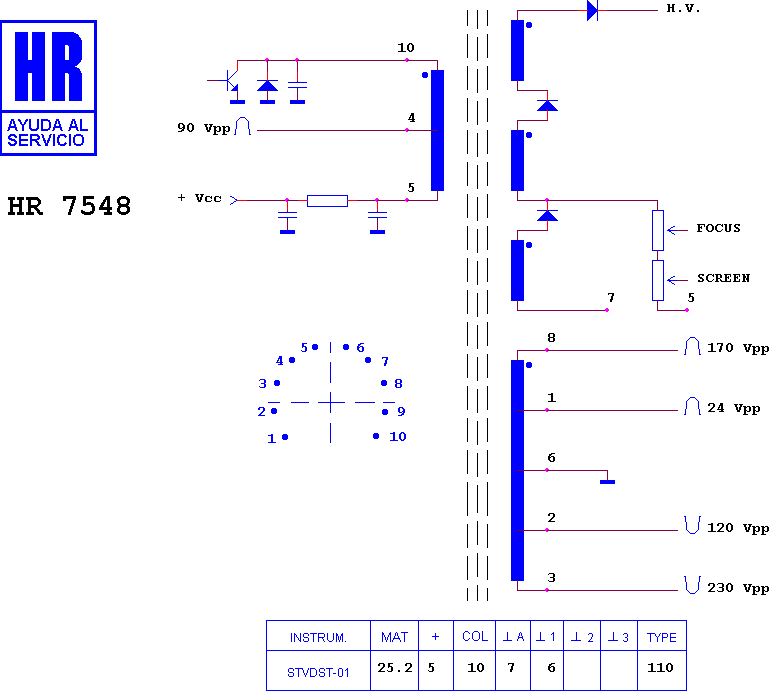

Schematic diagram for HR 7548
schematic

Manufacturer equivalents (2)

2434131 · 2434131 H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6210 · HR 8436 · HR 8256 · HR 6608 · HR 80048 · HR 8326 · HR 8850 · HR 8763 · HR 8853 · HR 8952 · HR 8109 · HR 80002

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
