HR 8100

type ST · family 1AP1 · 30.3 kV maximum anode voltage · 110° deflection · 4 windings · 390 g

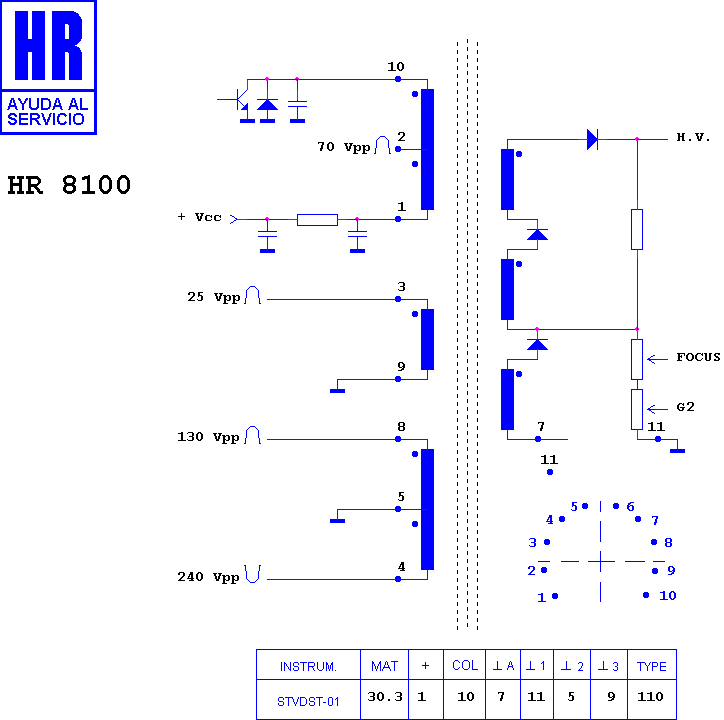

Schematic diagram for HR 8100
schematic

Manufacturer equivalents (10)

1105.1127 · 1172.0367 · 1192.0257 · 1192.0407 · 401 058 · F 990 · FAT30540 · FAT30751 · HR 8100 · KN30540

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6720 · HR 6608 · HR 80047 · HR 8901 · HR 8995 · HR 6483 · HR 7965 · HR 6273 · HR 8332 · HR 7951 · HR 7990 · HR 6272

Fitted to (4)

C.G.E. CHASIS F 990 · IMPERIAL CHASIS F 990 · IMPERIAL CHASIS F 990 110§ · PHILCO CHASIS F 990
