HR 8431

type SM · family 1VS · 27.9 kV maximum anode voltage · L° deflection · 4 windings · 352 g

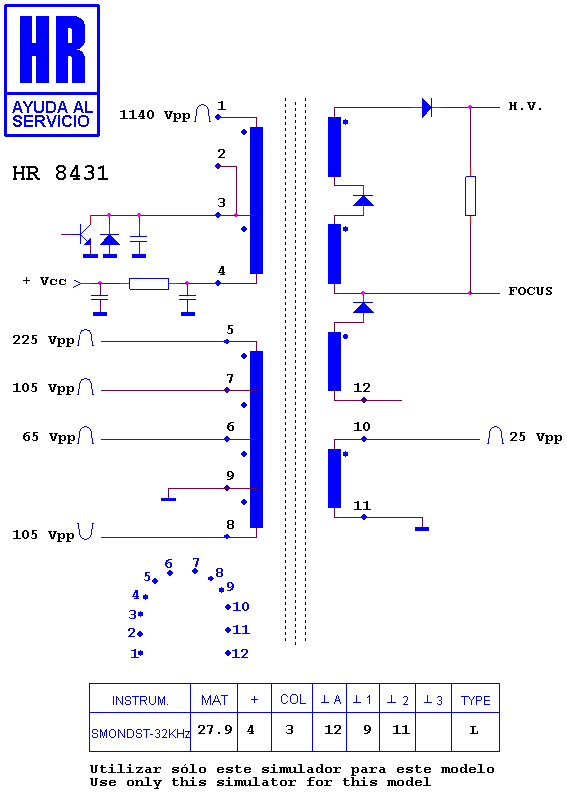

Schematic diagram for HR 8431
schematic

Manufacturer equivalents (10)

003320139 · 0100620 · 100620 · 1372.6009 · 1372.6009 A · 1372.6009R · 35837830 · HR 8431 · RO501 · TR501

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6661 · HR 6597 · HR 8196 · HR 6663 · HR 6662 · HR 8470

Fitted to (2)

SCHNEIDER CHASIS TV 17 · SCHNEIDER SCINEMA 3210
