HR 6663

type SM · family 1BP1 · 25.5 kV maximum anode voltage · L° deflection · 5 windings · 380 g

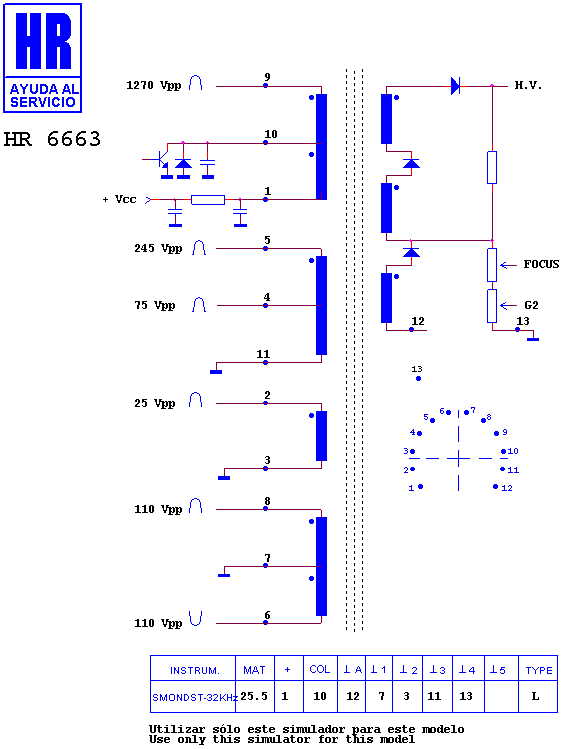

Schematic diagram for HR 6663
schematic

Manufacturer equivalents (5)

0100166 · 100166 · 103721.50 · 103721F0.P1 · 40333-12

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6662 · HR 8431 · HR 8196 · HR 6597 · HR 8470 · HR 8476

Fitted to (10)

DUAL MT 2010 · DUAL ST 2850 · SCHNEIDER 70 224 · SCHNEIDER 70 224/E · SCHNEIDER 70 224/P · SCHNEIDER CHASIS DTV 100 · SCHNEIDER CTV 7197/100 · SCHNEIDER EXCELLENT 100 · SCHNEIDER EXCELLENT 28 · SCHNEIDER TV 100
