HR 8476

23.8 kV maximum anode voltage · L° deflection · 3 windings · 461 g

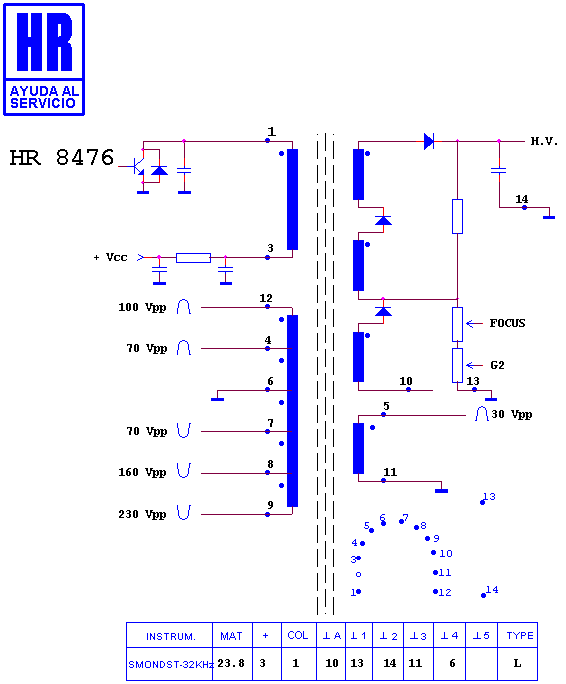

Schematic diagram for HR 8476
schematic
Schematic diagram for HR 8476
schematic (archived)

Manufacturer equivalents (1)

HR8476

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6663 · HR 46195 · HR 8421

Fitted to (1)

UNIC MONITOR AENA
