HR 46195

type SM · family 1WP1 · 28.1 kV maximum anode voltage · L° deflection · 3 windings · 444 g

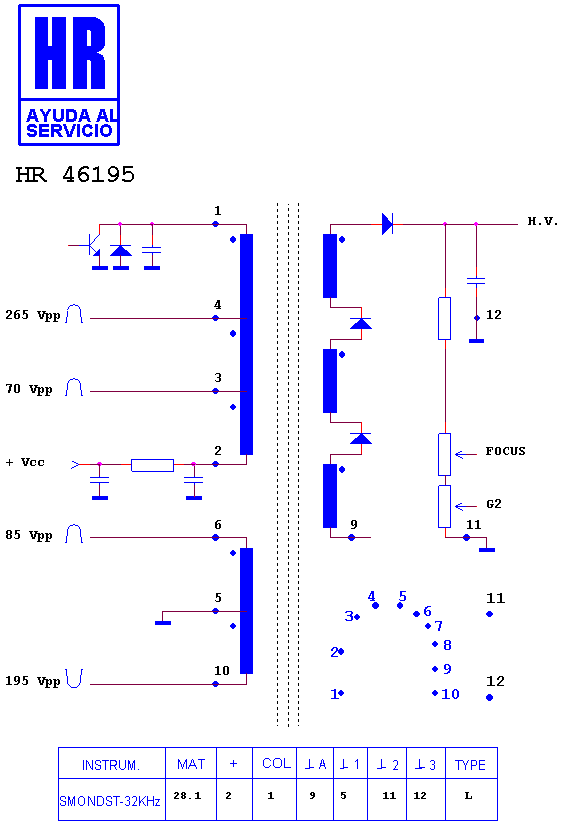

Schematic diagram for HR 46195
schematic

Manufacturer equivalents (2)

IP14185 · KFS 61244

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6658 · HR 46175 · HR 8476

Fitted to (6)

DAEWOO KD 1710 · DAEWOO MONITOR · KDS-KOREA DATA SYSTEMS KD 1710 · KDS-KOREA DATA SYSTEMS MONITOR · ORQUETRA MONITOR · ORQUETRA TYMPANI 17
