HR 6661

type SM · family 1BP1 · 29.2 kV maximum anode voltage · L° deflection · 4 windings · 380 g

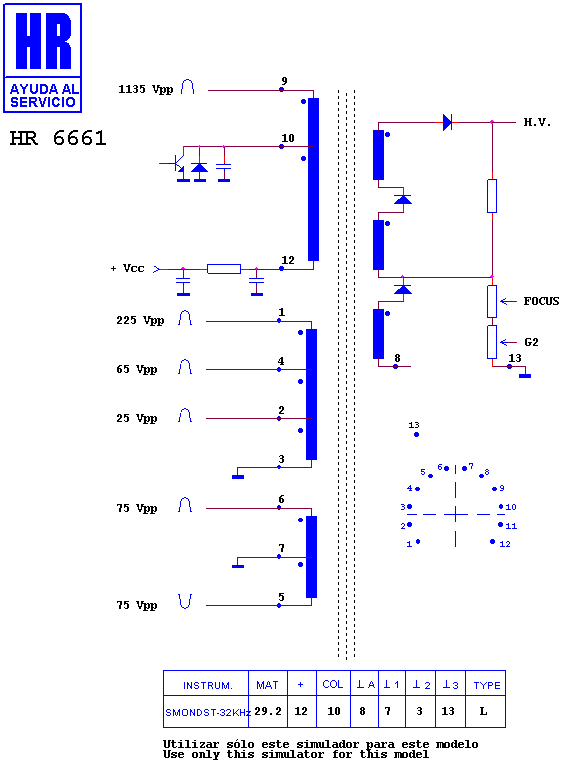

Schematic diagram for HR 6661
schematic

Manufacturer equivalents (8)

0100701 · 0100920 · 100701 · 100920 · 1182.1667 · 1182.1667A · FAT30788 · HR 6661

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6668 · HR 8431 · HR 6662 · HR 8146

Fitted to (3)

SCHNEIDER CHASIS DTV 101 · SCHNEIDER DTV 101 · SCHNEIDER SCENARO 2815
