HR 8146

type SM · family 1YP · 16.7 kV maximum anode voltage · L° deflection · 3 windings · 410 g

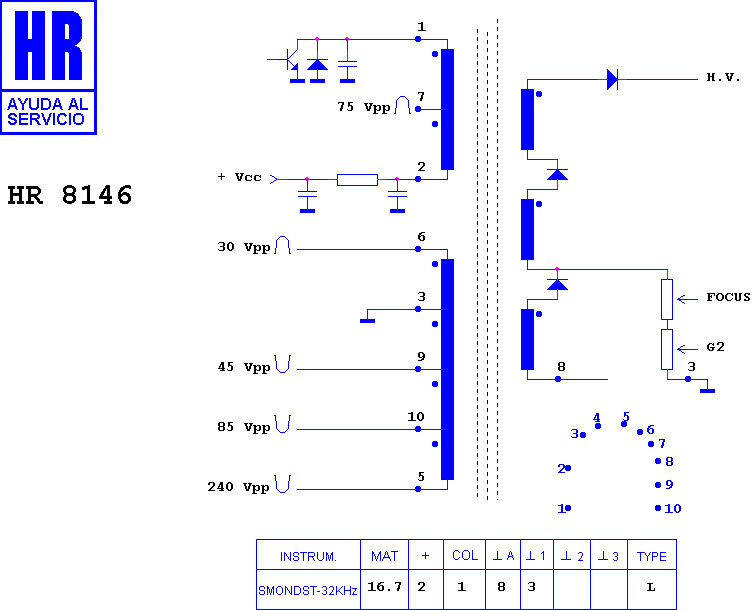

Schematic diagram for HR 8146
schematic

Manufacturer equivalents (1)

TLF 15607 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6661 · HR 8745 · HR 6668

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
