HR 8745

20.1 kV maximum anode voltage · L° deflection · 3 windings · 400 g

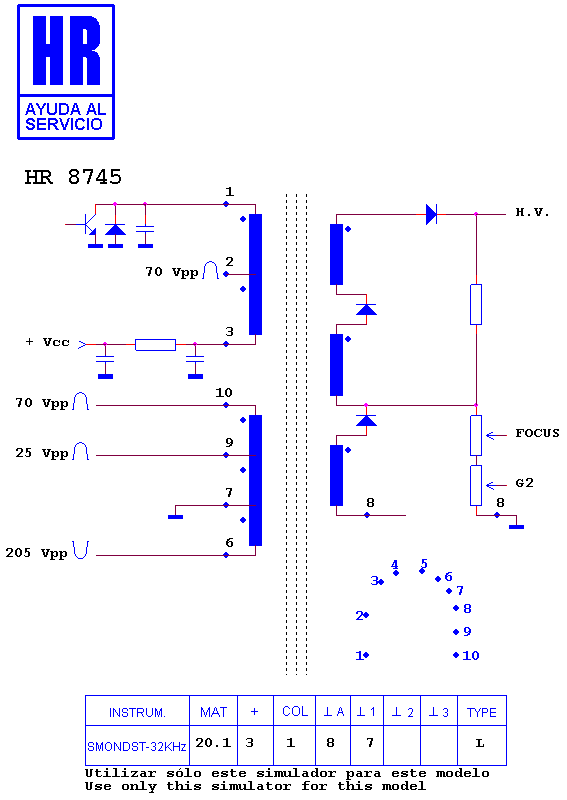

Schematic diagram for HR 8745
schematic (archived)

Manufacturer equivalents (1)

154162C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6554 · HR 8146

Fitted to (4)

GOLDSTAR - LG A 51290 SD · GOLDSTAR - LG CFZ 2588 F · GOLDSTAR - LG CI 2588 · GOLDSTAR - LG CIT 2588
