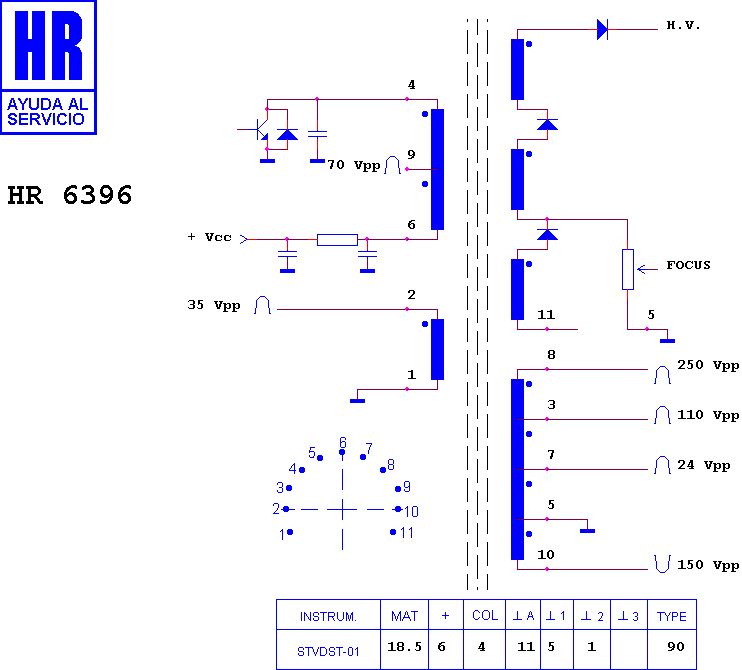

HR 6396

type ST · family 1BP1 · 18.5 kV maximum anode voltage · 90° deflection · 4 windings · 425 g

Manufacturer equivalents (12)

002 651 0146 · 26510146 · BSC 0609 · BSC 24-01082 · F 1182 CE · F 1205 CE · FAT 3862 · ME/6152-00 · MSH-D529 · RTRNF1182CEZZ · RTRNF1205CEZZ · Z4011

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6662 · HR 6407 · HR 6408 · HR 7481 · HR 7721 · HR 7723 · HR 7822 · HR 7657 · HR 7711 · HR 8087 · HR 7856 · HR 7954

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
